TIRNet data download page

Infrared Thermography Laboratory

INGV-Istituto Nazionale di Geofisica e Vulcanologia - Osservatorio Vesuviano

SF1 Station - Solfatara1 (NEC/FLIR)

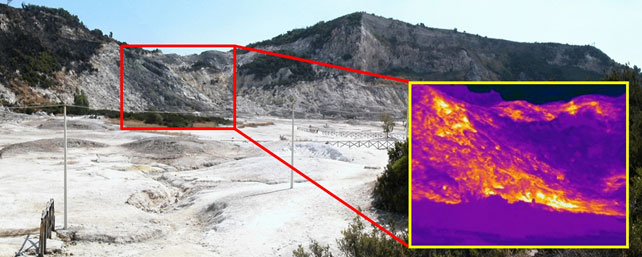

Immagine IR Solfatara1
Station location Solfatara crater (see map)
Coordinates UTM - X (m): 427.460; Y (m): 4.520.154
Elevation 92 m a.s.l.
Target area Fumarole area below the SE crater border
Distance sensor-target ≈ 400 m
Acquisition times 00:00, 02:00, 04:00 UTC
Sensor band 8 - 14 µm
IR camera NEC TS7302 (320 x 240)
FoV 29° x 22°
Pixel size ≈ 63 cm
Connection GSM
Working period 09.09.2004 – 06.01.2014
SF1 - Download NEC infrared data
2004 TXT file 2005 TXT file 2006 TXT file 2007 TXT file 2008 TXT file 2009 TXT file
2010 TXT file 2011 TXT file 2012 TXT file 2013 TXT file 2014 TXT file
IR camera FLIR SC325 (320 x 240)
FoV 15° x 11.25°
Pixel size ≈ 33 cm
Connection WiFi
Working period 24.04.2014 - 25.01.2016
SF1 - Download FLIR (320x240) infrared data
2014 JPEG file CSV file 2015 JPEG file CSV file 2016 JPEG file CSV file
IR camera FLIR A655SC (640 x 480)
FoV 25° x 19°
Pixel size ≈ 23.1 cm
Connection WiFi
Working period 25.01.2016 – present time
SF1 - Download FLIR (640x480) infrared data
2016 JPEG file CSV file 2017 JPEG file CSV file 2018 JPEG file CSV file 2019 JPEG file CSV file 2020 JPEG file CSV file
2021 JPEG file CSV file 2022 JPEG file CSV file 2023 JPEG file CSV file 2024 JPEG file CSV file
In order to use TIRNet data you have to cite:
Sansivero F., Vilardo G. (2022). Ground-based thermal/IR images acquired by TIRNet permanent
volcanic surveillance network. Istituto Nazionale di Geofisica e Vulcanologia (INGV).
https://doi.org/10.13127/vd/tirnet
For more information please contact fabio.sansivero@ingv.it

Licenza Creative Commons
These data are licensed under a Creative Commons Attribution 4.0 International License
